Trailing edge of rudder

2 participants

Aller en bas

Trailing edge of rudder Empty Trailing edge of rudder

Message  mariusl Mar 15 Nov 2016, 11:37

Hi
I am finishing a M4S kit for someone and found that the previous builder made the trailing edge of the rudder and the fin very flat and sharp. The documentation states that it should not be done that way.
Does anyone know what the effect will be and if I should worry about changing it.

mariusl

Nombre de messages : 10
Localisation : South Africa
Constr./proprio. : 042
Date d'inscription : 13/04/2016

Revenir en haut Aller en bas

Trailing edge of rudder Empty Re: Trailing edge of rudder

Message  Max Cointe Mar 15 Nov 2016, 17:37

mariusl a écrit:Hi
I am finishing a M4S kit for someone and found that the previous builder made the trailing edge of the rudder and the fin very flat and sharp. The documentation states that it should not be done that way.
Does anyone know what the effect will be and if I should worry about changing it.

Hi Marius,
how flat (and sharp) is flat ? Any picture we can see ?
Max
Max Cointe
Max Cointe

Nombre de messages : 785
Localisation : Auxerre / LFLA
Constr./proprio. : propriétaire et mainteneur
Date d'inscription : 23/10/2012

Revenir en haut Aller en bas

Trailing edge of rudder Empty Re: Trailing edge of rudder

Message  mariusl Mer 16 Nov 2016, 05:36

Hi Max
I attached a picture. My opinion is that it is very sharp with a negative camber possibly.

It would seem that I cannot send pictures on my account. This is the error:
Impossible d'envoyer le fichier : dépassement de la taille totale de l'espace de stockage. (Espace restant : 2 Ko)

The picture is 48Kb

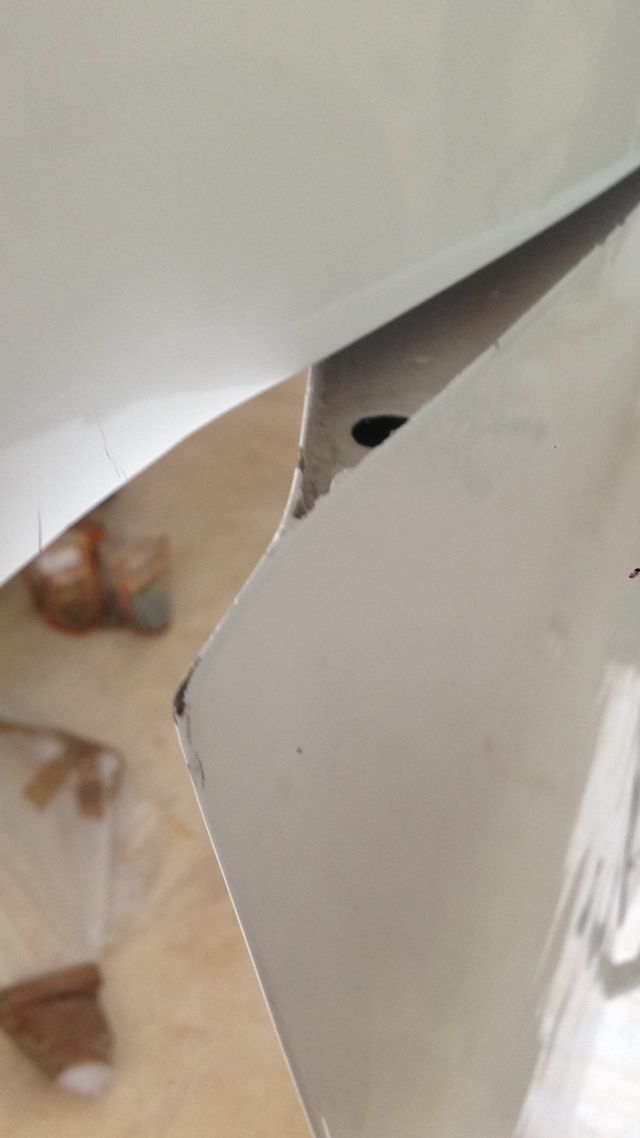

Trailing edge of rudder Rudder10


Dernière édition par mariusl le Mer 16 Nov 2016, 15:05, édité 1 fois

mariusl

Nombre de messages : 10
Localisation : South Africa
Constr./proprio. : 042
Date d'inscription : 13/04/2016

Revenir en haut Aller en bas

Trailing edge of rudder Empty Re: Trailing edge of rudder

Message  Max Cointe Mer 16 Nov 2016, 11:04

HI there,

edit an answer and click on the icon "floppy disk" (5th bloc, same that youtube). You can deposit a picture there...
Max Cointe
Max Cointe

Nombre de messages : 785
Localisation : Auxerre / LFLA
Constr./proprio. : propriétaire et mainteneur
Date d'inscription : 23/10/2012

Revenir en haut Aller en bas

Trailing edge of rudder Empty Re: Trailing edge of rudder

Message  mariusl Jeu 17 Nov 2016, 06:52

I added the picture in the post above. Thanks for the help on that.

mariusl

Nombre de messages : 10
Localisation : South Africa
Constr./proprio. : 042
Date d'inscription : 13/04/2016

Revenir en haut Aller en bas

Trailing edge of rudder Empty Re: Trailing edge of rudder

Message  Max Cointe Jeu 17 Nov 2016, 08:39

Hi there,

I'm not shocked but I will have a look this WE to compare with mine and post some picture also.
Can you take a more global picture, I mean to see the whole fin and rudder from the back?
Cheers,
Max Cointe
Max Cointe

Nombre de messages : 785
Localisation : Auxerre / LFLA
Constr./proprio. : propriétaire et mainteneur
Date d'inscription : 23/10/2012

Revenir en haut Aller en bas

Trailing edge of rudder Empty Re: Trailing edge of rudder

Message  mariusl Jeu 17 Nov 2016, 15:06

It will be great news if it can stay that way.

Trailing edge of rudder Rudder11

mariusl

Nombre de messages : 10
Localisation : South Africa
Constr./proprio. : 042
Date d'inscription : 13/04/2016

Revenir en haut Aller en bas

Trailing edge of rudder Empty Re: Trailing edge of rudder

Message  Max Cointe Ven 18 Nov 2016, 19:54

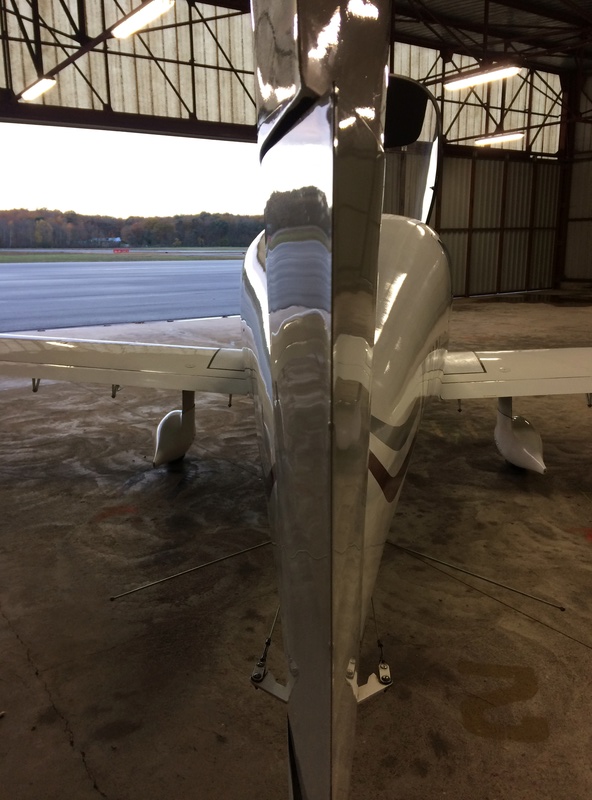

Trailing edge of rudder Img_0825
Trailing edge of rudder Img_0824
Trailing edge of rudder Img_0826
Hi There,

My pictures are not that great and not on the right position but I hope you'll see the thickness of our fin and rudder comparable to your's, aren't they...
BTW where are you located?
Max Cointe
Max Cointe

Nombre de messages : 785
Localisation : Auxerre / LFLA
Constr./proprio. : propriétaire et mainteneur
Date d'inscription : 23/10/2012

Revenir en haut Aller en bas

Trailing edge of rudder Empty Re: Trailing edge of rudder

Message  mariusl Sam 19 Nov 2016, 06:54

It would seem that mine is much too flat at the trailing edge.
I am located in South Africa - Pretoria area.

mariusl

Nombre de messages : 10
Localisation : South Africa
Constr./proprio. : 042
Date d'inscription : 13/04/2016

Revenir en haut Aller en bas

Trailing edge of rudder Empty Re: Trailing edge of rudder

Message  Max Cointe Sam 19 Nov 2016, 07:05

Bonjour les francophones,

quelqu'un a un avis sur le profil de la direction de notre ami marius le Sud-Af ?

Marius, I've been in SAF for a while but mainly in Cap Town and P.E. and Jo'bourg...
Max Cointe
Max Cointe

Nombre de messages : 785
Localisation : Auxerre / LFLA
Constr./proprio. : propriétaire et mainteneur
Date d'inscription : 23/10/2012

Revenir en haut Aller en bas

Trailing edge of rudder Empty Re: Trailing edge of rudder

Message  mariusl Sam 19 Nov 2016, 07:13

Could you do me a favor and measure the cord of the fin at the line where the rudder and the fin join. It looks like my rudder and fin needs to be trimmed. You fin does not reach to the end of the elevator and mine does.

mariusl

Nombre de messages : 10
Localisation : South Africa
Constr./proprio. : 042
Date d'inscription : 13/04/2016

Revenir en haut Aller en bas

Trailing edge of rudder Empty Re: Trailing edge of rudder

Message  Max Cointe Sam 19 Nov 2016, 21:31

mariusl a écrit:Could you do me a favor and measure the cord of the fin at the line where the rudder and the fin join. It looks like my rudder and fin needs to be trimmed. You fin does not reach to the end of the elevator and mine does.

here it is, I measured 31 cm from the axis of the elevator and the edge of the fin and 27.5 cm between axis and edge of the rudder. Hope this helps,
Cheers

Trailing edge of rudder Img_0827
Max Cointe
Max Cointe

Nombre de messages : 785
Localisation : Auxerre / LFLA
Constr./proprio. : propriétaire et mainteneur
Date d'inscription : 23/10/2012

Revenir en haut Aller en bas
